Carbon 6K Long Drum 6000lb Small 4X4 Winch/ATV
Carbon 6K Long Drum 6000lb Small 4X4 Winch/ATV
Couldn't load pickup availability
FREE SHIPPING IN AUSTRALIA!
NZ on Back Order Expect Shipping wait times
For Best turn around times and to get options of custom winch hook colours contact us prior to order to order through the Cliffords Workshop.
Stop wasting your time with other main stream brands! Carbon Offroad Winches have some of the best winches on the market with EPIC warranty!
Kit Out your Suzuki Jimny with a ideal fit Carbon Winch!
-

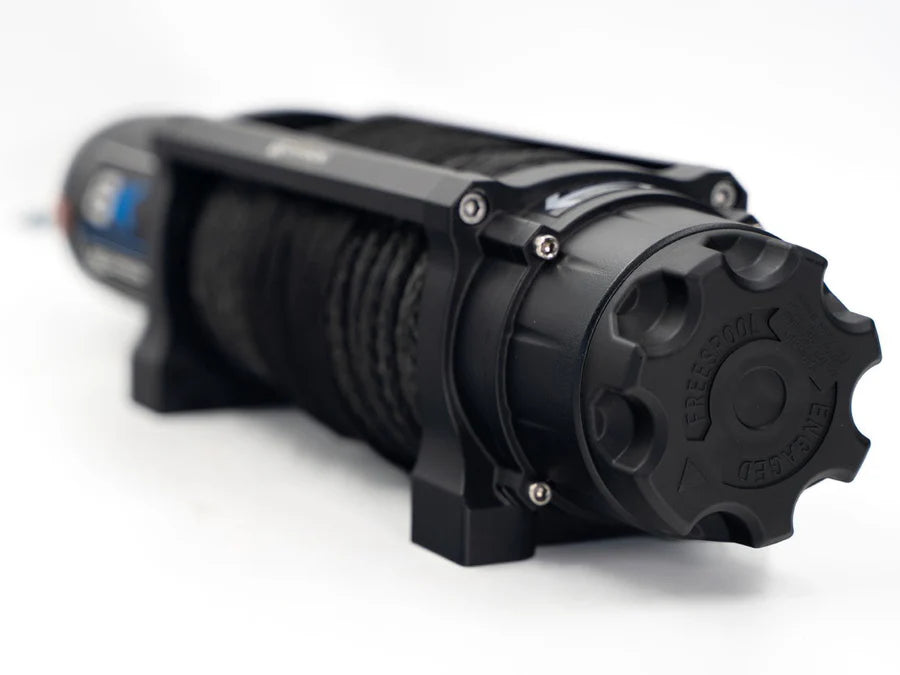

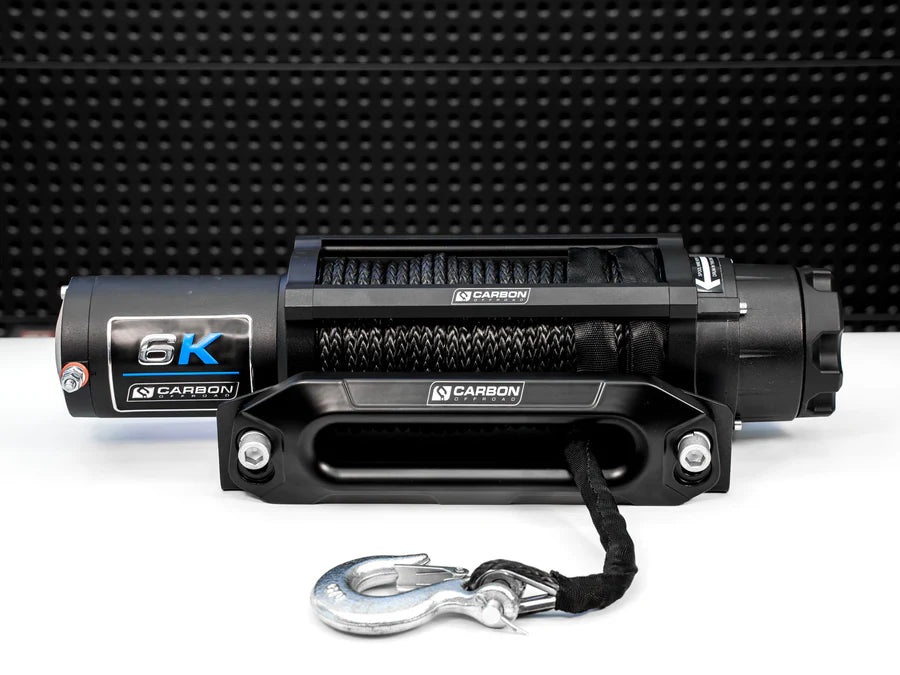

Carbon Offroad Long Drum 6K is a nimble workhorse created to reach where short-drum winches can’t.
With 6,000 lbs of pulling capacity and a generous 26m synthetic rope on its extended drum, the Carbon CW-XD6L is engineered for versatile duty on ATVs, compact 4WDs, caravans, trailers and boats. Do you need to haul a tinny up a steep, low-tide ramp? Slide heavy machinery into a van from well outside the rear doors? Winch a small 4WD or camper-trailer through deep sand without adding an extension rope? If your jobs demand extra line reach in tight spaces, this is the winch you’ve been waiting for. With a sealed permanent-magnet motor, near-silent free-spooling clutch, dual wired + wireless remotes and fail-safe braking, the Long Drum 6K delivers reliable power, precise control and the rope length to keep work sites—and weekend getaways—running smoothly.
- Sealed motor and geartrain allows for flawless operations in extreme conditions
- Permanent magnet motor provides heavy duty torque for increased pulling power
- Cam action disengages gears for near silent free-spooling
- Mechanical and dynamic brake offers increased control and prevents rollback
Specs:
- Part number: CW-XD6L
- Rated line pull: 6000 lbs, (2725kg) single-line
- Motor: 12V DC 2.5 HP permanent magnet
- Remote Control: Handlebar Mini-Rocker
- Wireless Remote Control: Included
- Geartrain: 3-Stage Planetary
- Gear Ratio: 147:1
- Clutch: Roller disc full load automatic
- Brake: Automatic brake in the motor bracket
- Aluminium hawse
- Lifetime Mechanical Warranty
- 5 Year Electrical Warranty
- IP Rating: IP66 for winch and solenoid (excludes remote control and switch)
- Synthetic Rope: 26m x 6.5mm diameter
- Drum Diameter/Length: 51mm x 208mm
- Mounting Bolt Pattern: 254mm x 76mm
- Recommended Battery: 650 CCA minimum for winching
- Winch Dimensions (L x W x H): 473 x 125 x 120mm
- Packing Dimensions (L x W x H): 530 x 170 x 230mm
- Winch weight with synthetic rope attached: 8.3kg
- Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 11.2kg
