Carbon Scout Pro 12k lb - 12000lb Winch V3
Carbon Scout Pro 12k lb - 12000lb Winch V3
Couldn't load pickup availability
FREE SHIPPING IN AUSTRALIA!
NZ on Back Order Expect Shipping wait times
For Best turn around times and to get options of custom winch hook colours contact us prior to order to order through the Cliffords Workshop.
Stop wasting your time with other main stream brands! Carbon Offroad Winches have some of the best winches on the market with EPIC warranty, IP68 Waterproof, Australian Designed, Light winch kit coming in at only 26.7kg with a buttery smooth TOUGH 180:1 Heavy Duty gear box with a powerful 7HP Motor.
From Carbon Australia : Australia's very own winch brand!
-

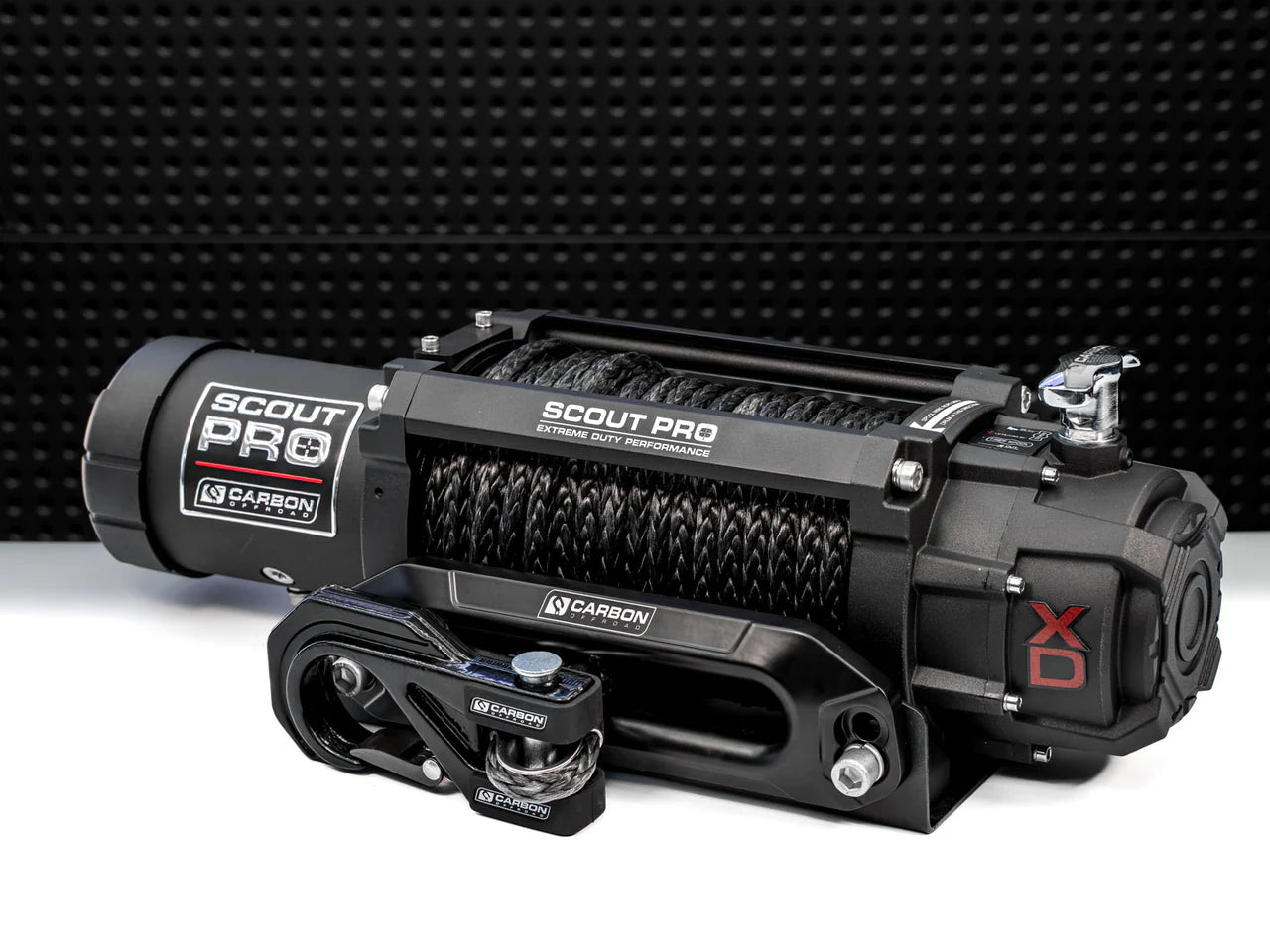

The Carbon Offroad Scout Pro Extreme Duty Performance Series winches are built with the frequent use winching user in mind who is tackling harsh offroad conditions on a regular basis, or the owner of vehicles which are extremely heavy, kitted out or towing in offroad conditions.
With larger modulus gearsets, increased motor horsepower and standard inclusions from our premium accessory range including the Mega-Pro Winch Rope Thimble and Mega-Pro Premium Fairlead, you are getting a best of the best package straight out of the box.

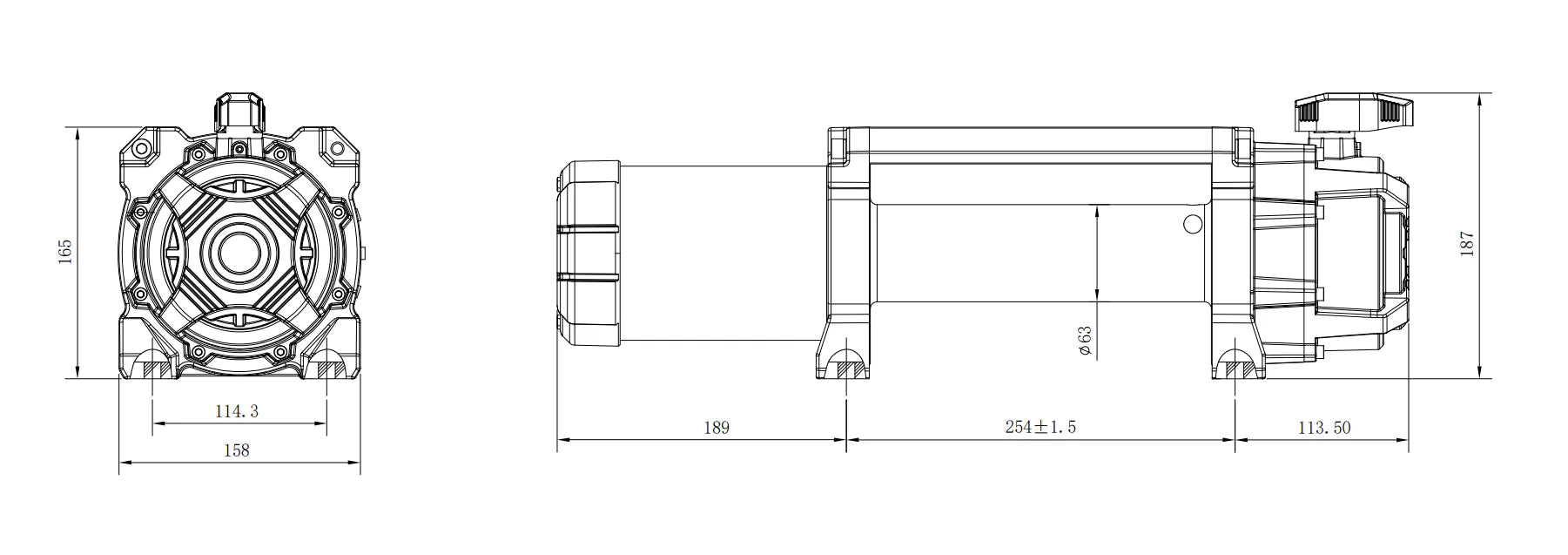

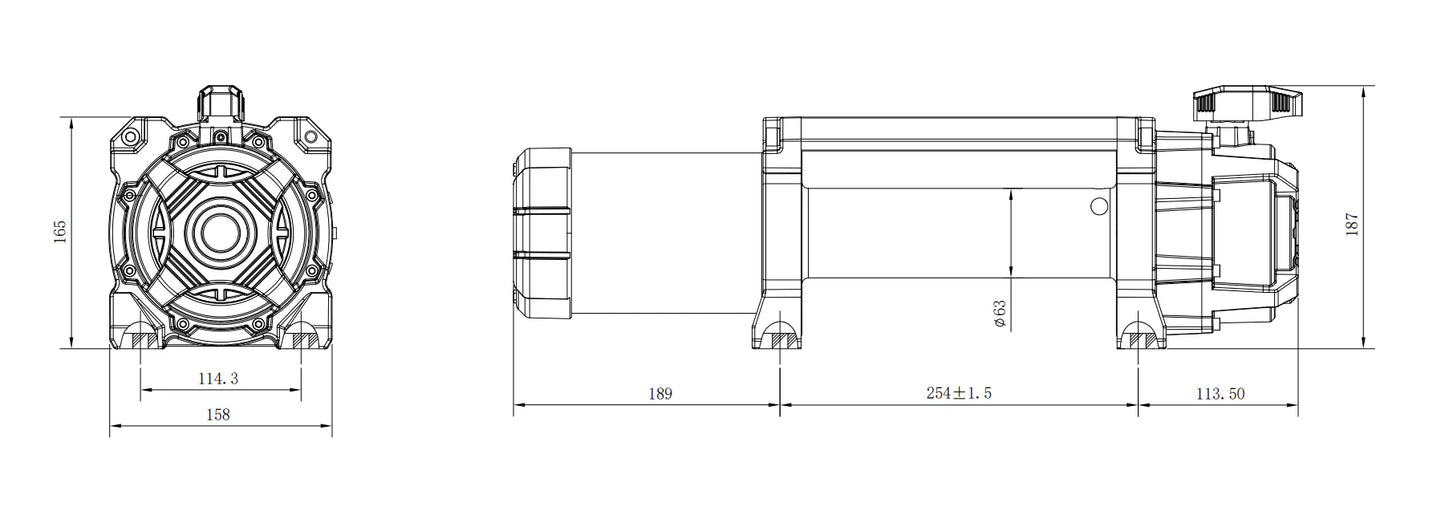

The Scout Pro series winches share the same 2023 Version 3 Winch Chassis as our tried and tested 12K winch. This allows fitment into most larger 4x4 utes and 4x4 Wagons. Due to the longer 7.0HP Motor, you should consult the technical drawing to determine clearance and fitment length on your winch mount. Most larger vehicles such as RAM, F-Truck and Silverado are generally wide enough to not be a problem, Fitment to any dual cab, 70 series, 200 series or any other similar sized 4wd wagon should be confirmed prior to purchase. The responsibility of the fitment is that of the end-user or installer.

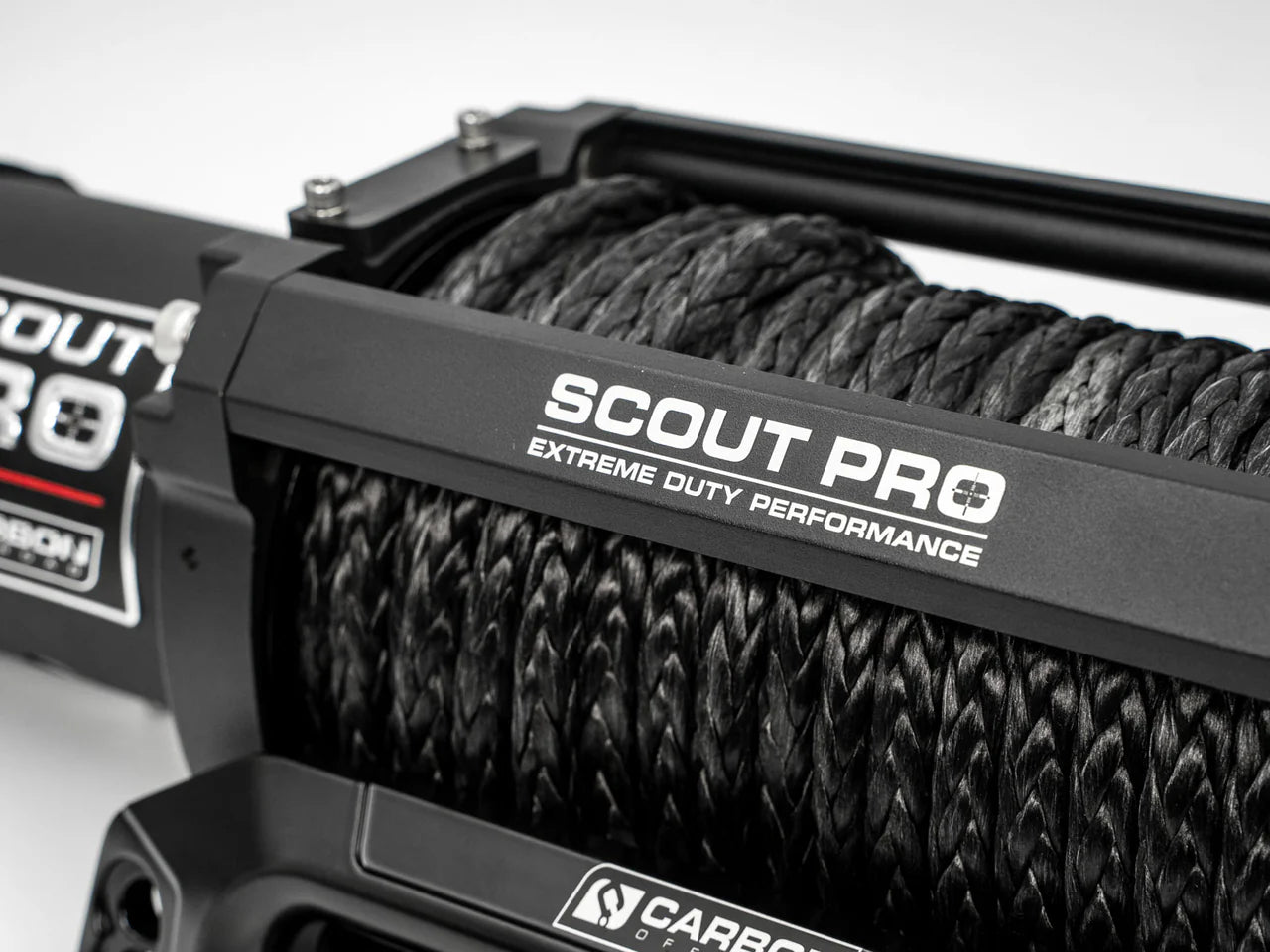

The 12000lb winch comes with 11mm high density pre stretched premium UHMWPE winch rope rated at a whopping 9000kg minimum breaking strain.
- Carbon Winch 2023 V3 winch chassis
- 7.0HP Motor
- 180:1 heavy duty performance gearbox
- 11mm x 24m Synthetic Rope with HD braced rope thimble
- Carbon Offroad MEGAPRO Premium CNC billet type 3 hard anodised multi position fairlead
- Carbon Offroad MEGAPRO 16 tonne soft shackle compatible winch rope thimble
- High performance heavy duty upgraded solenoid unit
- Installed weight of 26.7kg
| CW-XD12 | |||
| 12V DC performance specs (first layer of drum) | |||
| Line Pull | Line Speed | Motor | Pull by layer |
| Lbs.(Kgs.) | FT./min(M/min.) | Current | layer/Lbs(Kgs.) |
| 0 | 43.3 (13.2) | 70 amps | 1/12,000 (5450) |
| 2000 (910) | 14.8 (4.5) | 115 amps | 2/9800 (4450) |
| 4000 (1810) | 12.8 (3.9) | 165 amps | 3/8300 (3770) |
| 6000 (2720) | 9.2 (2.8) | 215 amps | 4/7200 (3270 |
| 10000 (4540) | 7.5(2.3) | 310 amps | |
| 12000 (5450) | 5.6(1.7) | 370 amps |
- Part number: CW-12k
- Rated line pull: 12000 lbs, (5450 kg) single-line
- Motor: 12V DC 6.2HP series wound motor (24V option available)
- Remote Control: Remote Switch, 12ft (3.7m) lead.
- Wireless Remote Control: Included
- Geartrain: 3-Stage Planetary.
- Gear Ratio: 216:1

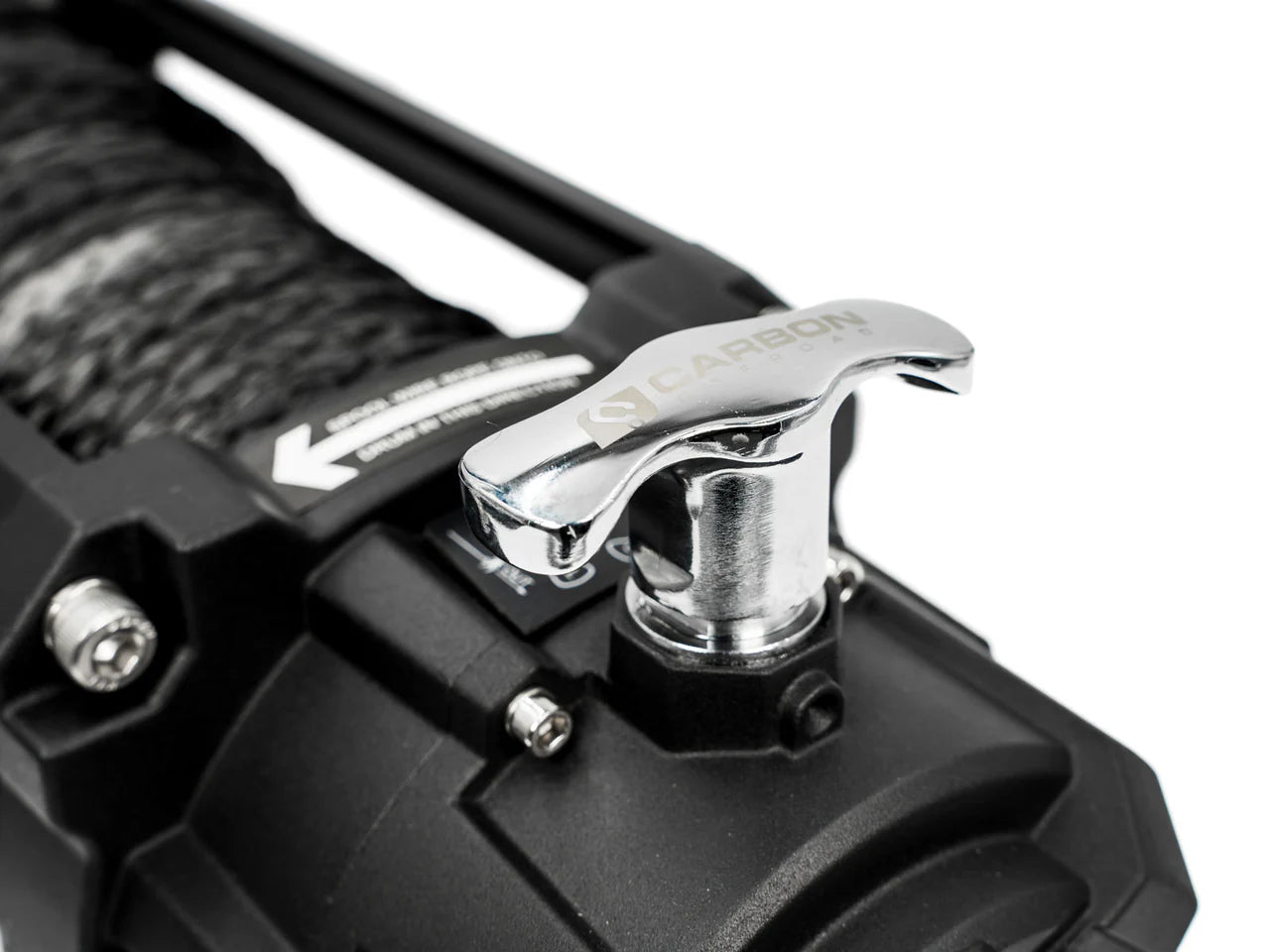

- Clutch (free spooling): Rotating Ring Gear clutch with manual pull and twist clutch handle
- Brake: Full load automatic brake installed in the motor housing end plate.
- Fairlead: Multi-fit CNC billet alloy black anodised with laser etched logo
- Lifetime Mechanical Warranty
- 5 Year Electrical Warranty
- 5 Year Water Ingress Protection Warranty
- Synthetic Rope: 24m x 10mm diameter
- Drum Diameter/Length: 64mm x 224mm
- Mounting Bolt Pattern: 254mm x 114.3mm
- Recommended Battery: 650 CCA minimum for winching
Whats Included:
- 1 x Carbon 12K winch
- 24m x 10mm high strength synthetic winch rope
- 1 x Carbon winch hook (not applicable for BYO Hook version)
- 1 x 600A solenoid box Inc - all battery cables, wireless remote receiver, multi-fit mount
- 1 x Long black battery cable
- 1 x Wireless remote
- 1 x Wired remote
- 1 x Multifit CNC Alloy fairlead (offset and standard position)
- 4 x Mounting bolts
- 3 x Allen keys
- 2 x Additional longer mounting bolts (fairlead mounting)
- 2 x Additional nuts for remote mounting solenoid box
- 1 x Hook hand saver strap
- 1 x Carbon lanyard
- 1 x Carbon stubby cooler
- 1x Installation manual
